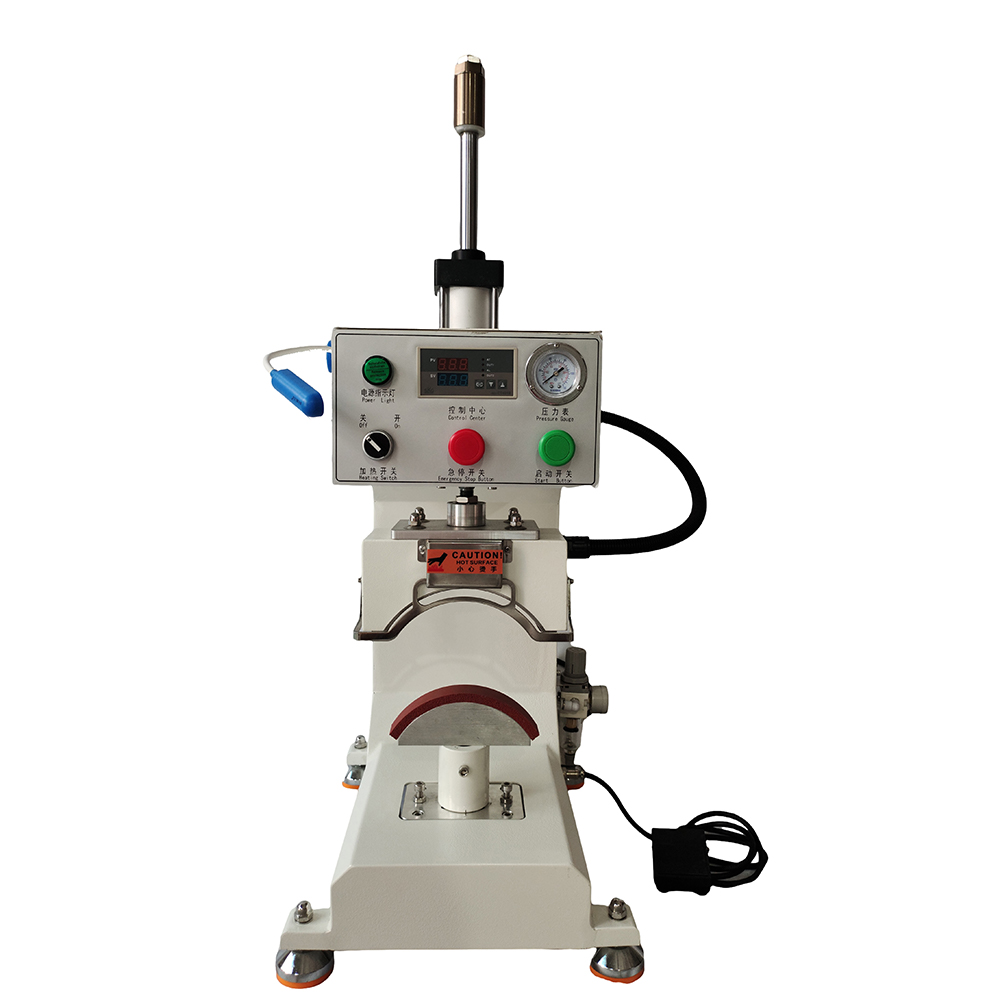

热压机

2026-03-25 19

功能特点

Feature

1.气动垂直加压,省时省力的同时并保证足够压力。

2.自动平行工作台,能够确保被压衣物每个地方的压力平衡。

3.分体式加压板与发热板可满足不同要求的生产方式。

4.工作表面自动恒温加热。

5.工数位设置,完成加压时间后,加压板自动提升确保每次加压时间相同

6.工作台面积可以更换尺寸。


1.Pneumatic vertical pressure, save time and labor while ensuring adequate pressure.

2.Automatic parallel work table, can ensure the pressure balance in every place of the pressed clothes.

3. Split pressure plate and heating plate can meet different requirements of the mode of production.

4.Automatic constant temperature heating of working surface.

5. After the pressure time is finished, the pressure plate is automatically lifted to ensure the same pressure time.

6. The size of worktable can be changed.


型号
Mode

工作面积
Working area

温度范围定时
Temp

加压时间
Timing

Range

电压/功率
Voltage/Powere

压缩空气
Air compression

气缸行程
Lift travel

净重
Net weight

毛重

木箱尺寸

HT-100

直径100mm

常温~400℃ Up to 400℃



1-999s

AC220V/900w

2-5.5kg/cm²

Sc63x150mm

41kg

50kg

长55cm

宽52cm

高100cm

HT-150

直径150mm
