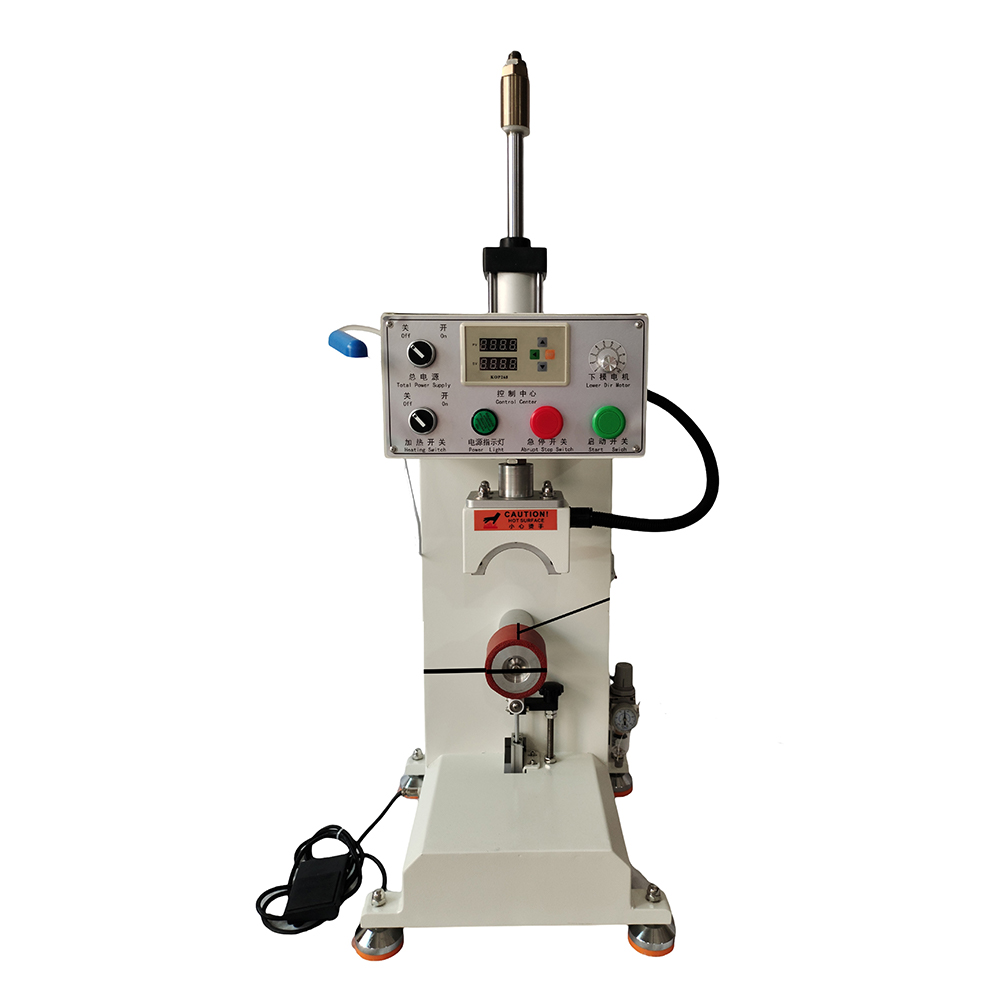

袖口热压机

2026-03-25 25

功能特点 Feature

1.气动垂直加压,省时省力的同时并保证足够压力。

2.自动平行工作台,能够确保被压衣物每个地方的压力平衡。

3.下压结束下模可自动旋转,旋转圈数可调。


1.Pneumatic vertical pressure,save time and labor while ensuring adequate pressure.

2. Automatic parallel work table. can ensure the pressure balance in every place of the pressed clothes.

3. The lower die can be

automatically rotated at the end of down pressing. and the number of rotation turns can be adjusted.


型号 Mode

HT-XK860

HT-XK560

工作面积 Working area

直径80*长60mm

直径52*长60mm

温度范围定时 Temp

常温~400℃Up to 400℃

电压/功率 Voltage/Powere

AC220V/1000w

压缩空气 Air compressio

2-5.5kg/cm²

气缸行程 Lift travel

Sc63x125mm

加压时间 Timing  Range

1-999s

净重 Net weight

40KG

毛重

57kg

木箱尺寸

(L)49*(W)54*(H)113cm
