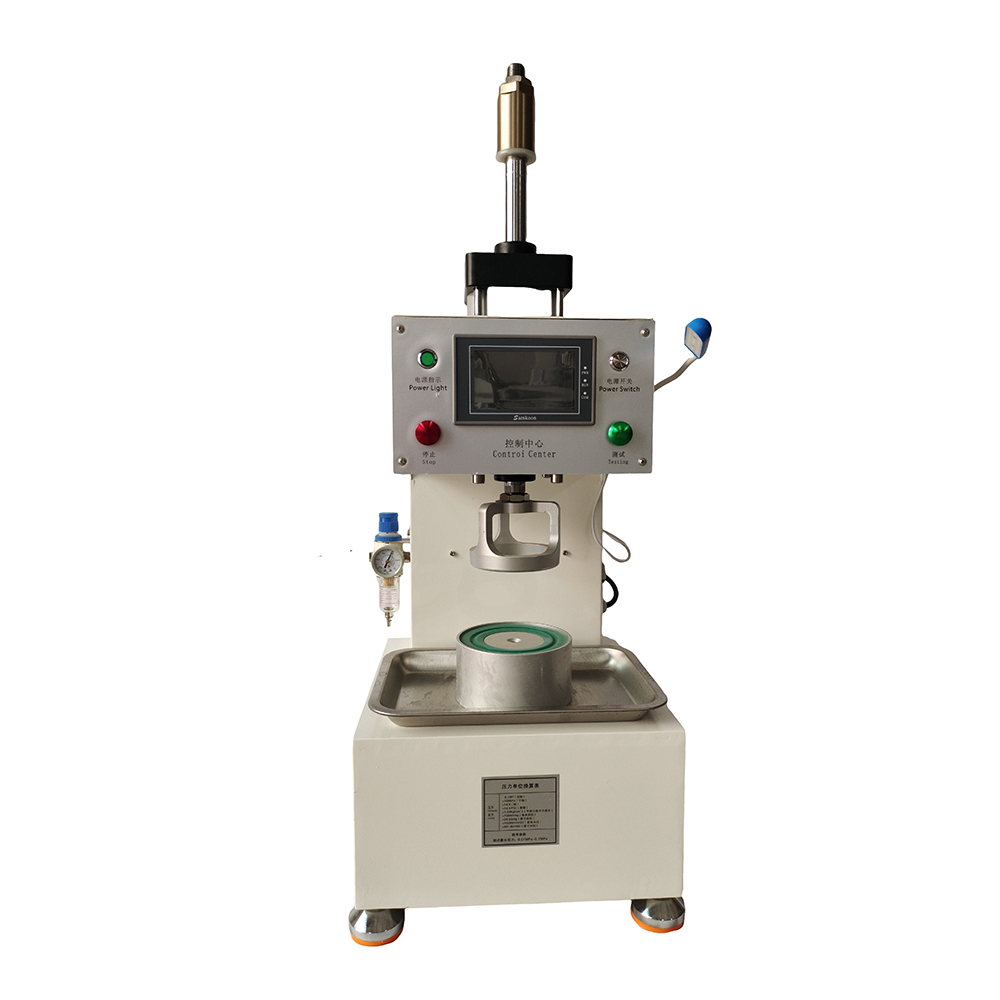

全自动水压测试机

2026-03-25 23

1.触屏式PLC控制系统,机器工作更加方便高效。

2.本机采用压缩空气,操作简单,采用直观易用的气缸拉阀控制。

3.分段时间、分段压力可自由设定适合不同测试需求。


1.The touch screen PLC control system makes the machine work more convenient and efficient.
2.The machine is Compressed air, easy to operate, using intuitive easy to use cylinder pull valve control.

3.The duration of each segment and the pressure applied can be freely set to suit different testing requirements.


型号
Mode

压环直径
Ring diameter

压盘工作直径
Working

测量范围
range

电压/功率
Voltage/Powere

压缩空气
Air compression

气缸行程
Lift travel

净重
Net weight

毛重

木箱尺寸

HT-S3

(气动)

Φ100mm

Φ130mm

2kpa~100kpa

无需用电

0.8~3.5kg/cm2

SDA63*50mm

15KG

25KG

长44cm

宽44cm

高73cm

HT-S3A

(全自动)



2kpa~200kpa

AC220V/200w


SC100*100mm

48KG

58KG

长49cm

宽49cm

高113cm
